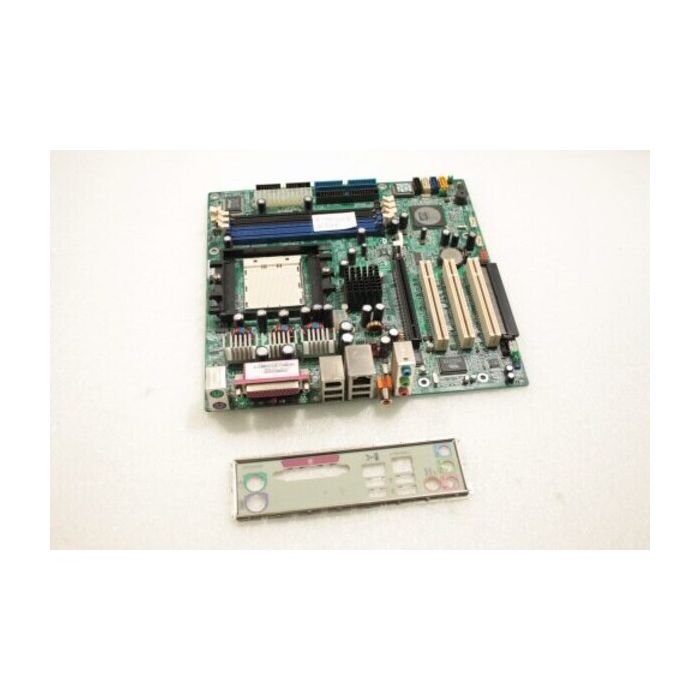

HP Pavilion M1000 P&Q 0503 CM-1 94V-0 Socket 939 Motherboard MS-7093 M-ATX

HP Pavilion M1000 P&Q Socket 939 Motherboard MS-7093 M-ATX

Model: 0503 CM-1 94V-0

• Motherboard Specifications:

  • CPU

   Supports Socket-939 for AMD K8 Athlon 64 FX processor

   Supports Newcastle:4000 + and above

  Claw Hammer: 3000+, 3200+ and 3400+ and 3700+

  Sempron: 3100+ and above

  (For the latest information about CPU, please visit http://www.msi.com.tw/pro-

  gram/products/mainboard/mbd/pro_mbd_cpu_support.php)

  • Chipset

  ATI

  RX480 Chipset

  - HyperTransport

  TM

  connection to AMD K8 Athlon64 processor

  - 8 or 16 bit control/address/data transfer both directions

  - 1GHz, 800/600/400/200MHz “Double Data Rate” operation both direction

  - Compliant with PCI Express 1.0a spec



  ATI

  SB400 Chipset

  - Supports dual channel native SATA controller up to 150MB/s with RAID 0 or RAID

  1 or 0+1

  - Integrated Hardware Sound Blaster/Direct Sound AC97 audio

  - Ultra DMA 66/100/133 master mode PCI EIDE controller

  - ACPI & PC2001 compliant enhanced power management

  - Supports USB2.0 up to 8 ports

  • Main Memory

   Supports dual channel, eight memory banks DDR 333/400, using four 184-pin

  DDR DIMMs

  Supports a maximum memory size up to 4GB without ECC

  Supports 2.5v DDR SDRAM DIMM

  (For the updated supporting memory modules, please visit http://www.msi.com.

  tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.)

  • Slots

   One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)

   Three 32-bit Master 3.3V/5V PCI Bus slots

   One SCSI connector for PCI Extender Card

  • Onboard IDE

   An IDE controller on the ATI

  SB400 chipset provides IDE HDD/CD-ROM with PIO,

  Bus Master and Ultra DMA 100/66/33 operation modes

   Can connect up to 4 IDE devices

  • Onboard Serial ATA

   Supports 4 SATA ports with up to 150MB/s transfer rate

  •  USB Interface

   8 USB ports

  - 4 ports in the rear I/O, 4 ports via the external bracket

  •  LAN

   Realtek

  8100C 10/100 LAN chip

  - Integrated Fast Ethernet MAC and PHY in one chip

  - Supports 10Mb/s and 100Mb/s

  - Compliance with PCI v2.2

  - Supports ACPI Power Management

  •  IEEE 1394

   VIA

  6307 IEEE 1394 controller

  - Supports up to two 1394 ports (rear panel x 1, pinheader x 1).

  - Transfer rate is up to 400Mbps

  •  Audio

   RealTek ALC658C 6-channel software audio codec

  - Compliance with AC97 v2.3 Spec.

  - Meets PC2001 audio performance requirement.

  • On-Board Peripherals

   On-Board Peripherals include:

  - 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

  - 1 SPDIF-Out connector

  - 1 parallel port supporting SPP/EPP/ECP mode

  - 8 USB2.0 ports (Rear*4/Front*4)

  - 1 Audio (Line-In/Line-Out/MIC) port

  - 1 RJ-45 LAN Jack

  - 2 IDE ports support 4 IDE devices

  - 4 serial ATA ports

  - 2 IEEE1394s (Rear * 1 / Front * 1)

  •  BIOS

   The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral

  devices and expansion cards of the board automatically.

   The mainboard provides a Desktop Management Interface (DMI) function which

  records your mainboard specifications.

   Supports boot from LAN, USB Device 1.1 & 2.0, and SATA HDD.

  •  Dimension

   Micro-ATX Form Factor: 24.4cm X 24.4cm

  •  Mounting

   8 mounting holes
