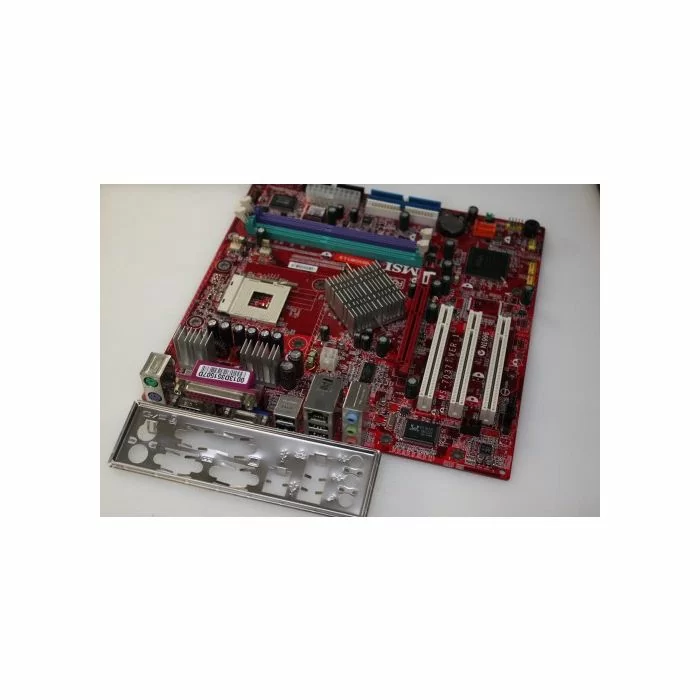

MSI MS-7037 865GM3-LS Socket 478 AGP Motherboard
P/N:
- Motherboard Specifications:
- Processor
- Supports Intel® P4 Northwood/Prescott/P4 Extreme Edition processors.
- FSB 400(Northwood only)/533/800MHz
- Supports up 3.4GHz and higher speed P4 processor.
- Chipset
- Intel® 865G Chipset
- Supports 800/533/400MHz Intel NetBurst micro-architecture bus.
- Integrated graphic controller.
- Supports PC2100/PC2700 /PC3200 memory.
- Supports AGP 8X/4X at 0.8V (AGP 3.0) or 4X at 1.5V (not support 3.3V) interface.
- Intel® ICH5 Chipset
- AC'97 2.3 interface
- 8 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- 2 serial ATA Host Controllers
- Integrated LAN controller
- Main Memory
- Supports dual-channel function
- Available bandwidth up to 3.2GB/s(DDR 400) for single-channel mode and 6.4GB/s(DDR 400) for dual-channel mode.
- Supports two unbuffered DIMM of 2.5 Volt DDR DRAM.
- Supports up to 2GB memory size without ECC.
- Slots
- One AGP slot
- Three PCI 2.2 32-bit Master PCI Bus slots.
- Supports 3.3v/5v PCI bus Interface.
- Dimension
- 24.5 cm(L) x 24.5 cm(W) Micro-ATX Form Factor
- Package Includes
- Motherboard
- I/O Plate
