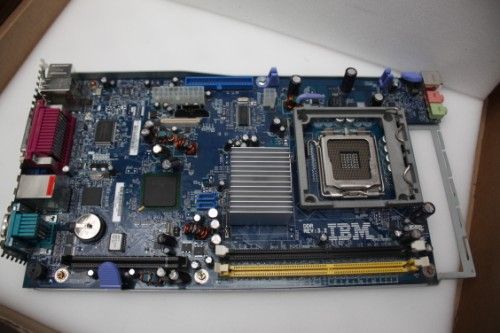

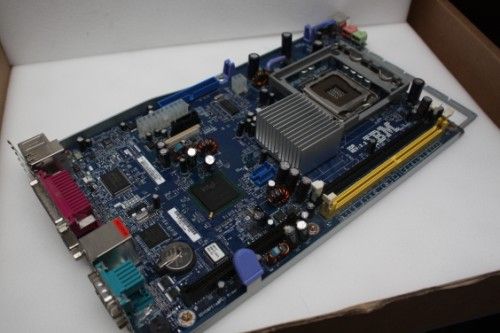

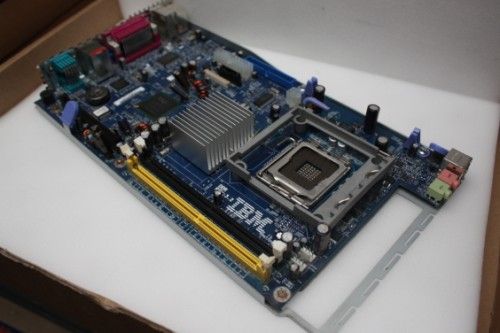

IBM 29R8259 Thinkcentre S51 A51 SFF LGA775 MotherboardProduct Code: 815
Out of stock
IBM P/N: 39J7584 , 29R8259
- Product Type: Motherboard - ATX
- Chipset Type: Intel 915G Express / Intel ICH6
- Max Bus Speed: 800 MHz
- Processor Socket: LGA775 Socket
- Max Processors Qty: 1
- Compatible Processors: Pentium 4
- Max Supported Memory 2 GB
- Supported RAM Technology: DDR SDRAM
- Supported RAM Speed: 400 MHz
- Supported RAM (Registered or Buffered): Unbuffered
- RAM Features: Dual channel memory architecture
- Graphics Controller: Intel GMA 900
- Memory Allocation Technology: Dynamic Video Memory Technology 3.0
- Audio Codec: AD1981B
- Compliant Standards: AC '97, SoundMAX Cadenza
- Network Controller: Broadcom BCM5705
- Network Interfaces: Gigabit Ethernet
- Expansion Slot(s)
- 2 x memory - DIMM 184-PIN 1 x processor - LGA775 Socket 1 x PCI ( 5 V ) - half-length, full-height 1 x PCI Express x1 - half-length, full-height
- Storage Interfaces
- Intel ICH6 : ATA-100 - connector(s): 1 x 40pin IDC - 2 Device(s) Intel ICH6 : Serial ATA-150 - connector(s): 2 x 7pin Serial ATA - 2 Device(s)

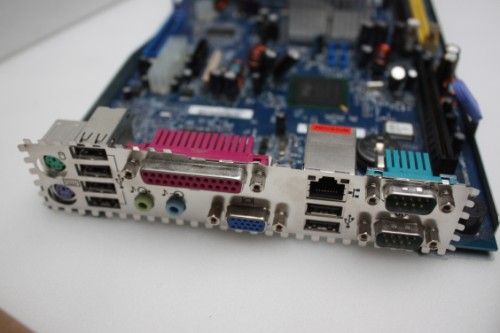

- 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x storage - floppy interface - 34 PIN IDC 6 x Hi-Speed USB - 4 PIN USB Type A 2 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x audio - line-In - mini-phone stereo 3.5 mm 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
- BIOS Features: ACPI support, Hyper-Threading Technology
- Sleep / Wake Up: Wake on LAN (WOL)
- Package Includes
- retention bracket
- To use with: Small Form Factor Desktop Computer Machine
|Dispatch Time||You can select first available delivery slot upon checkout.
Get it Next Day when you choose Express Delivery at checkout.
|Price View||Price Range|
|Condition Comment||Full working order|
|Warranty||30 Day RTB (Return to Base) Warranty|
|Important||It is your responsibility as a buyer to ensure this is compatible with your hardware or operating system before buying.
Assume that any photo is a library photo, not the actual item you will receive, unless expressly mentioned above. Item has been pulled from salvage machine so expect the item to be in a used condition with minor scuffs etc.
Unless expressly mentioned in the description, there will be no other parts included with the item. This includes items such as drivers, cables, manuals, warranty cards etc. Hard drives, tape drives, caddies etc. will not include any screws, fixing rails unless expressly mentioned.
