Gigabyte GA-P35-DS3R Socket LGA775 Quad Core Motherboard

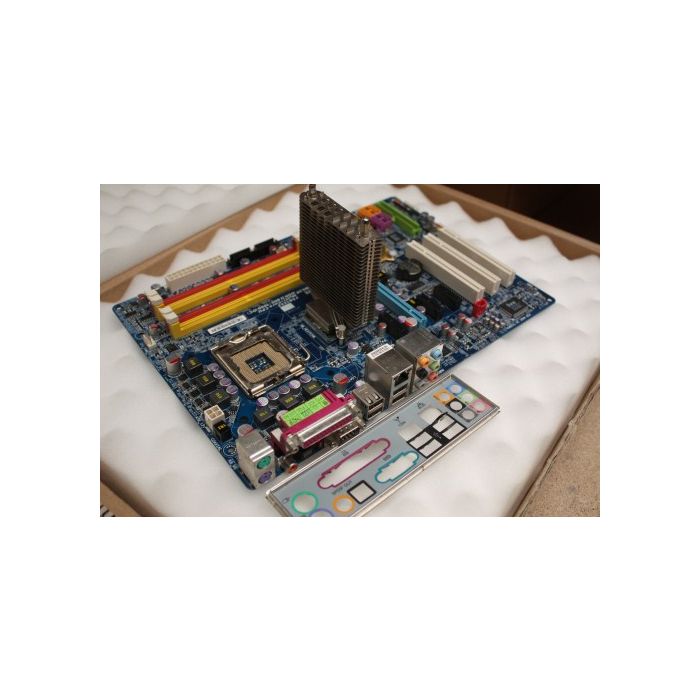

Gigabyte GA-P35-DS3R Socket LGA775 Motherboard

P/N: GA-P35-DS3R

• Specification
• CPU
• Support for an Intel Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
• L2 cache varies with CPU
• 1600 (O.C.)/1333/1066/800 MHz FSB


• Chipset
• North Bridge: Intel® P35 Chipset
• South Bridge: Intel® ICH9R


• Memory
• 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
• Dual channel memory architecture
• Support for DDR2 1200 (O.C.)/1066/800/667 MHz memory modules


• Audio
• Realtek ALC889A codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF In/Out
• Support for CD In


• LAN
• Realtek 8111B chip (10/100/1000 Mbit)


• Expansion Slots
• 1 x PCI Express x16 slots
• 3 x PCI Express x1 slots
• 3 x PCI slots


• Form Factor
• ATX (305 x 210mm)


• Back Panel Connectors
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x coaxial S/PDIF Out connector
• 1 x optical S/PDIF Out connector
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
• 1 x serial
• 1 x parallel


• Package Includes
• Motherboard
• I/O Plate
