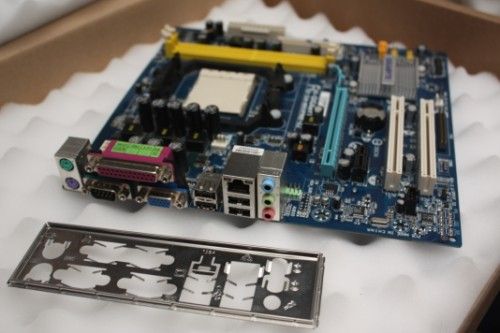

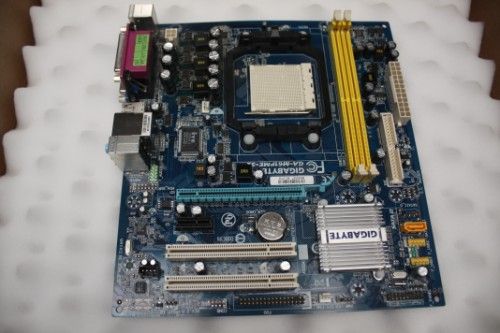

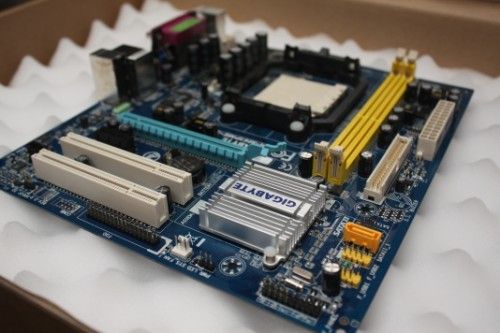

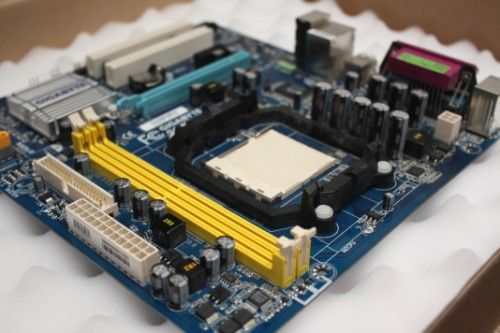

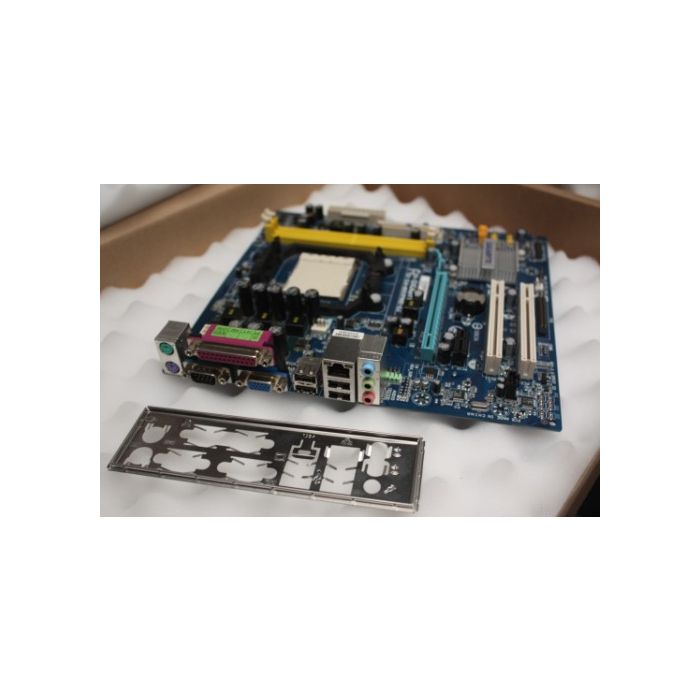

Gigabyte GA-M61PME-S2 AM2 GeForce 6100 Motherboard

GIGABYTE Technology latest S series motherboards for AMD socket AM2 platform, featuring with two innovative features- Safe and Smart Technologies. The new S series motherboards GA-M61PME-S2; supporting AMD new generation AM2 processor with dual channel DDR2 800MHz high frequency memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD Socket AM2 platform!

• CPU
• Socket AM2 for AMD Athlon™64 FX / Athlon™64 X2 Dual-Core / Athlon™64 / Sempron™processor



• Chipset
• NVIDIA® GeForce 6100 / nForce 430 chipset
• Super I/O: ITE IT8716 chip
• Integrated Peripherals: Realtek RTL8201 phy, Realtek ALC662 Audio Codec


• Memory
• 2 DDR2 DIMM memory slots (supports up to 8GB memory)
• Supports dual channel DDR2 800/667/533/400 DIMMs
• Supports 1.8V DDR2 DIMMs

  Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.


• Internal I/O Connectors
• 1 24-pin ATX power connector
• 1 4-pin ATX 12V power connector
• 1 floppy connector
• 1 IDE connectors
• 2 SATA 3Gb/s connectors
• 1 CPU fan connector
• 1 system fan connector
• 1 front panel connector
• 1 front audio connector
• 1 CD In connector
• 1 Power LED connector
• 2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
• 1 SPDIF Out connector
• 1 Chassis Intrusion connector
• 1 HDA_SUR connector


• Expansion Slots
• 1 PCI Express x 16 slot
• 1 PCI Express x 1 slot
• 2 PCI slots

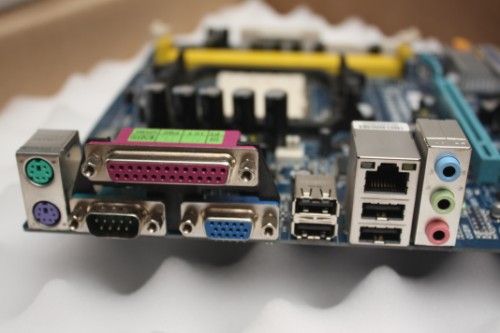

• Back Panel Connectors
• 1 PS/2 keyboard port
• 1 PS/2 mouse port
• 1 parallel port
• 1 COMA port
• 1 VGA port
• 4 USB 2.0/1.1 ports
• 1 RJ-45 port
• 3 audio jacks (Line In / Line Out / MIC In)


• Power
• ATX power connector and ATX 12V connector


• H/W Monitoring
• System voltage detection
• CPU / System temperature detection
• CPU / System fan speed detection
• CPU / System warning temperature
• CPU / System fan failure warning
• Supports CPU Smart Fan function(Note2)

  (Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.


• BIOS
• 1 4Mbit flash ROM
• Use of licensed AWARD BIOS
• PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Other Features
• Supports @BIOS
• Supports Download Center
• Supports Q-Flash
• Supports EasyTune
• Supports Xpress Install
• Supports Xpress Recovery
• Supports Xpress BIOS Rescue


• Form Factor
• Micro ATX, 24.4cm x 22.5cm


• Package Includes:
• 1 x Motherboard
• 1 x I/O Back Plate Shield
