Gigabyte GA-G31M-ES2L LGA775 Intel G31 Core 2 Quad Motherboard

GA-G31M-ES2L supports Intel high performance CPU delivering the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multimedia enthusiasts and intensive multitasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.

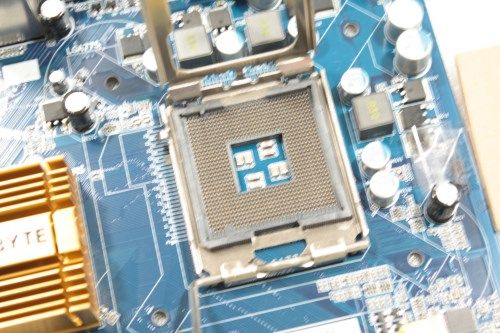

• CPU
• Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
• L2 cache varies with CPU


• Front Side Bus
• 1600(O.C.)/1333/1066/800 MHz FSB


• Chipset
• North Bridge: Intel® G31 Express Chipset
• South Bridge: Intel® ICH7


• Memory
• 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
• Dual channel memory architecture
• Support for DDR2 1066(O.C.)/800/667 MHz memory modules


• Onboard Graphics
• Integrated in the North Bridge


• Audio
• Realtek ALC883 codec
• High Definition Audio
• 2/4/5.1/7.1-channel (Note)
• Support for S/PDIF Out
• Support for CD In

  Note: To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.


• LAN
• RTL 8111C chip (10/100/1000 Mbit)


• Expansion Slots
• 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot
• 2 x PCI slots


• Storage Interface
  South Bridge:
• 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
• 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
  iTE IT8718 chip:
• 1 x floppy disk drive connector supporting up to 1 floppy disk drive


• USB
• Integrated in the South Bridge
• Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)


• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x floppy disk drive connector
• 1 x IDE connector
• 4 x SATA 3Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 1 x CD In connector
• 1 x S/PDIF Out header
• 2 x USB 2.0/1.1 headers
• 1 x chassis intrusion header
• 1 x power LED header

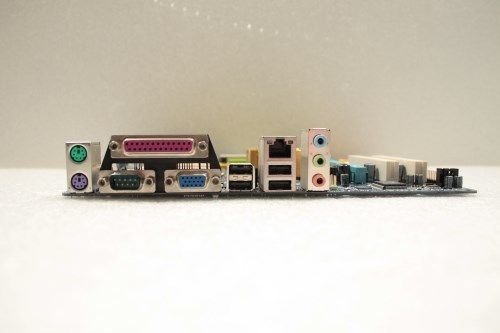

• Back Panel Connectors
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x parallel port
• 1 x serial port
• 1 x D-Sub port
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In/Line Out/Microphone)


• I/O Controller
• iTE IT8718 chip


• H/W Monitoring
• System voltage detection
• CPU temperature detection
• CPU/System fan speed detection
• CPU overheating warning
• CPU/System fan fail warning
• CPU fan speed control


• BIOS
• 2 x 4 Mbit flash
• Use of licensed AWARD BIOS
• PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


• Unique Features
• Support for @BIOS
• Support for Q-Flash
• Support for Virtual DualBIOS
• Support for Download Center
• Support for Xpress Install
• Support for Xpress Recovery2
• Support for EasyTune
• Support for Easy Energy Saver


• Operating System
• Support for Microsoft®Windows Vista/7/XP


• Form Factor
• Micro ATX form factor; 24.4cm x 19.4cm

• Package Includes:
• Gigabyte GA-G31M-ES2L Rev:1.1 Motherboard
• I/O Shield
