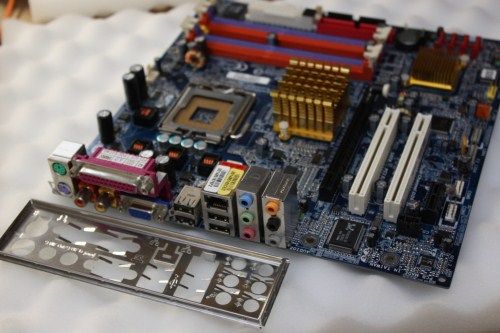

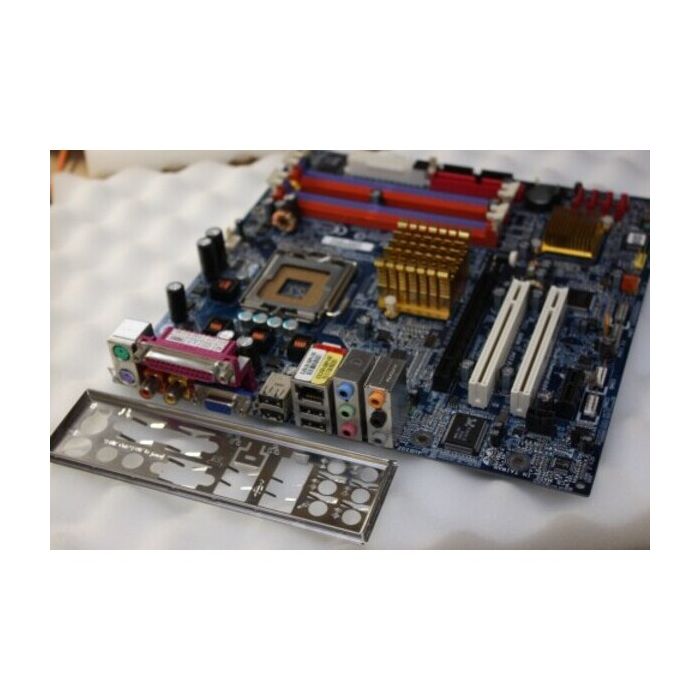

Gigabyte PCI-Express Socket LGA775 Motherboard
Model: GA-G31M-S2L
- Specifications
- CPU
- LGA 775 Intel® Pentium® 4
- Expansion Slots
- 1 x PCI Express x16
- 1 x PCI Express x1
- 2 x PCI
- Internal I/O Connectors
- 2 x cooling fan pin header
- 1 x FDD
- 1 x COM
- 2 x USB 2.0 (supports 4 ports)
- 1 x CD in
- 1 x 24-pin ATX power connector
- 1 x 4-pin ATX 12V power connector
- 1 x UltraDMA 100/66 IDE
- 1 x IEEE 1394 pin header (by optional cable)
- 4 x SATA
- Back Panel Connectors
- 1 x VGA
- 1 x RJ45 LAN
- 1 x LPT
- PS/2 (Keyboard/Mouse)
- 2 x SPDIF (In/Out)
- 4 x USB 2.0
- 6 x audio ports (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
- Form Factor
- microATX
- 244mm x 244mm
- Package Includes
- Motherboard
- I/O Plate
