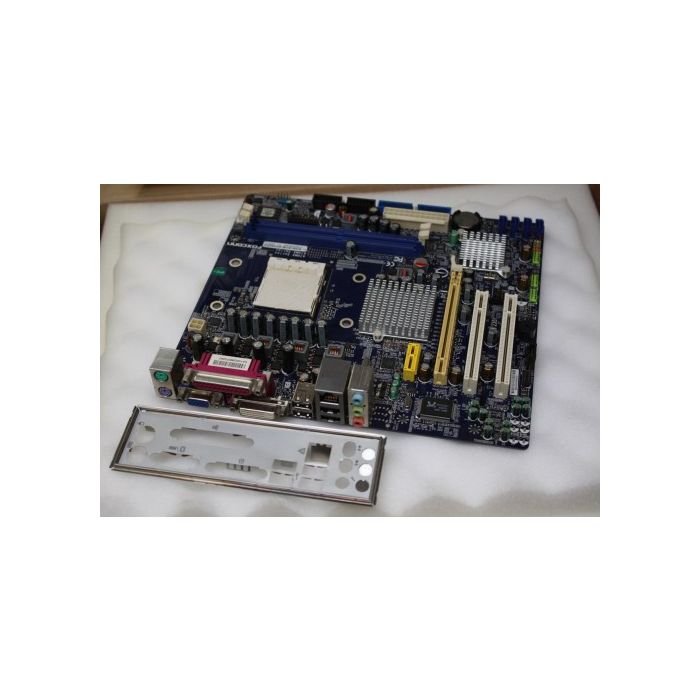

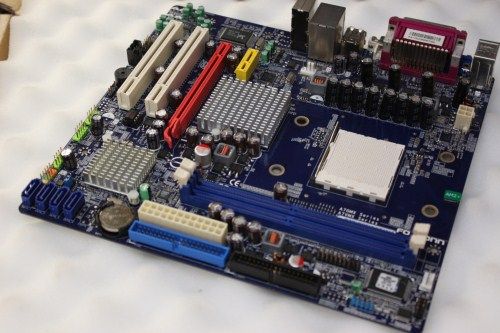

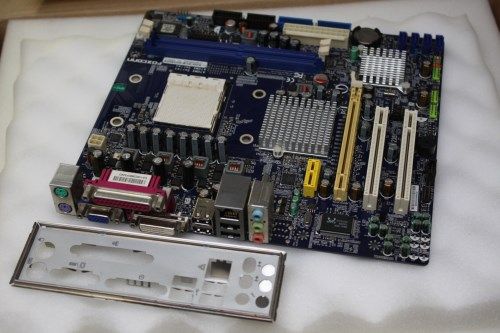

Foxconn AM2 AM2+ PCI-Express Motherboard
P/N: A7VMX-K
- Specifications
- Processor
- AMD Phenom™ FX, Phenom™, Athlon™ 64FX, Athlon™ 64x2, Athlon™ 64, Sempron™ processors, Socket AM2 and AM2+.
- Chipset
- AMD® 780V + SB700
- Front Side Bus
- 5.2 GT/s HyperTransport™
- Memory
- Dual channel DDR2 1066**/800/667/533 x 2 DIMMs, Max. 4GB
- VGA on Die
- Integrated
- Expansion Slots
- 1* PCIe 2.0 x16
- 1* PCIe 2.0 x1
- 2* PCI
- Audio
- 5.1 channel HD Audio by Realtek® ALC662
- LAN
- Gigabit LAN by Realtek® RTL8110SC

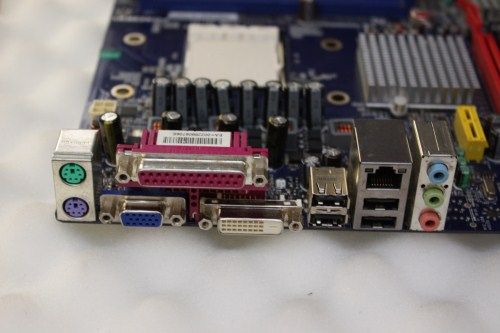

- Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x Parallel port
- 1 x Audio jack supports 3 jacks
- 4 x USB 2.0 ports
- 1 x RJ45 LAN port
- 1 x DVI-D port Internal
- I/O Connectors
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 2 x 4-pin CPU / System FAN connectors
- 1 x Floppy disk drive connector
- 1 x CD-in connector
- 1 x Front Audio Header
- 1 x Front Panel header
- 1 x S/PDIF Out header
- 1 x IrDA (reserved)
- 1 x Buzzer
- 4 x USB 2.0 headers support additional 8 ports
- 1 x ATA133 IDE connector
- 1 x Speaker (reserved)
- 4 x Serial ATAII connectors
- 1 x Intrusion Alarm header
- 1 x COM1 header
- 1 x COM2 header(reserved)
- 1 x TPM header
- 1 x CIR header
- Form Factor
- Micro ATX (9.6” x 8.8”)
- Package Includes
- Motherboard only
