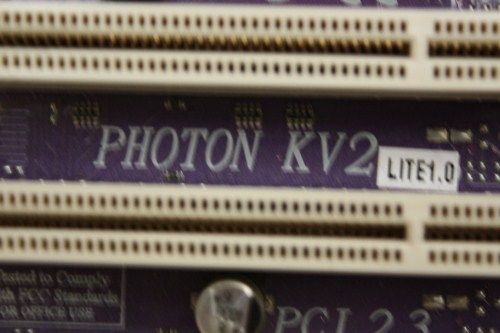

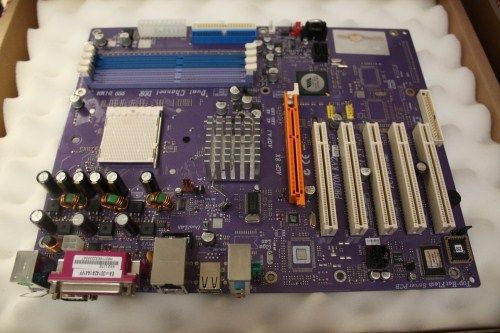

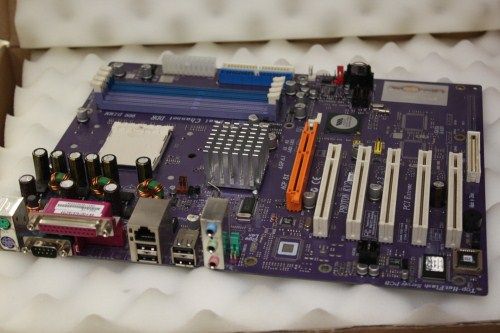

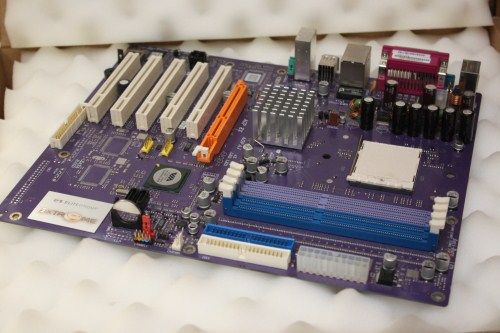

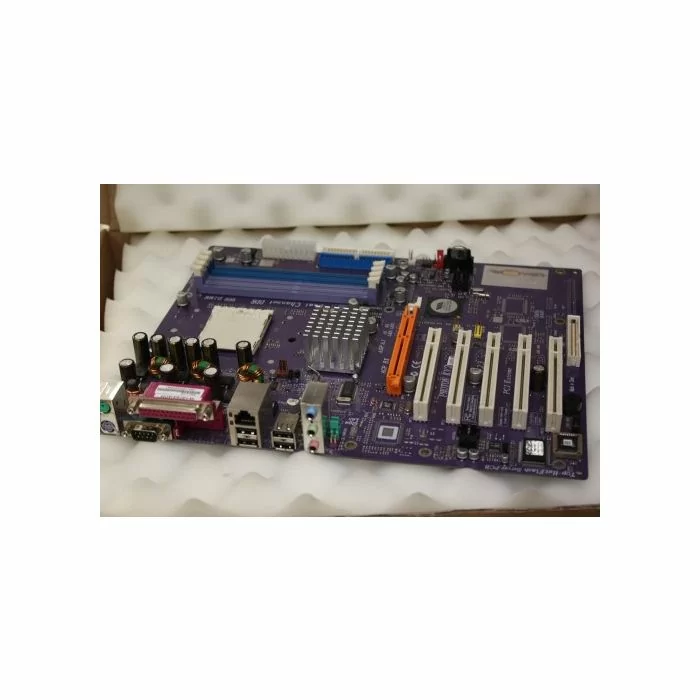

ECS Extreme Photon KV2 Socket 939 AGP 8X ATX Motherboard
ECS Extreme Socket 939 AGP 8X Motherboard
P/N: Photon KV2
- Motherboard Specifications:
- CPU
- Socket 939 for AMD Athlon 64 X2 Dual-Core/ Athlon 64/ Athlon 64 FX processor.
- High-performance Hyper Transport CPU interface.
- Support transfer rate of 2000/1600/1200/800/400 mega-transfers per second.
- CHIPSET
- VIA K8T800 Pro, VT8237
- North Bridge: VIA K8T800 Pro
- South Bridge: VIA VT8237
- MEMORY
- Dual-channel DDR memory architecture
- 4 x 184-pin DDR SDRAM DIMM socket support up to 4 GB
- Support DDR400/333/266 DDR SDRAM
- Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS.For Windows 64-bit OS with 64-bit CPU, there is no such limitation
- EXPANSION SLOT
- 1 x AGP 8X/4X slot
- 5 x PCI slots
- STORAGE
- Support by VIA VT8237
- 4 x Ultra DMA133/100/66 devices
- 2 x Serial ATA devices
- RAID0 & RAID1 configuration
- AUDIO
- Realtek ALC655 6-Channel audio CODEC
- Compliant with AC'97 2.3 specification
- LAN
- VIA VT6103L 10/100 Mbps Fast Ethernet PHY
- REAR PANEL I/O
- 1 x PS/2 keyboard PS/2 mouse connectors
- 4 x USB ports
- 1 x RJ45 LAN connector
- 1 x Parallel port (LPT)
- 1 x Serial port (COM1)
- 1 x Audio port (Line-in, Line-out, Mic-in)
- INTERNAL I/O CONNECTORS HEADERS
- 1 x 20-pin ATX Power Supply Connector
- 1 x 4-pin ATX 12V connector
- 1 x FDD connector supports one 360K~2.88MB FDD
- 2 x IDE connectors
- 2 x Serial ATA connectors
- 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
- 1 x Front panel switch/LED header
- 1 x Front panel audio header
- CD in/ AUX in headers
- CPUFAN/CASEFAN connectors
- FORM FACTOR
- ATX Size (305mm*244mm), 6 layers
- Package Includes
- Motherboard
- I/O Plate
| SKU | Photon-KV2 |
|---|---|
| MPN | Photon KV2 |
| Price View | Price Range |
| Manufacturer | ECS |
| Number of Memory Slots | 4 |
| Features | On-Board Audio |
| Condition | Certified Refurbished (Excellent) |
| Condition Comment | Full working order |
| Warranty | 12 Month Warranty |
| Important | It is your responsibility as a buyer to ensure this is compatible with your hardware or operating system before buying. Assume that any photo is a library photo, not the actual item you will receive, unless expressly mentioned above. Unless expressly mentioned in the description, there will be no other parts included with the item. This includes items such as drivers, cables, manuals, warranty cards etc. Hard drives, tape drives, caddies etc. will not include any screws, fixing rails unless expressly mentioned. |
