Dell OptiPlex 755 SFF PU052 0PU052 LGA775 MotherboardProduct Code: 962

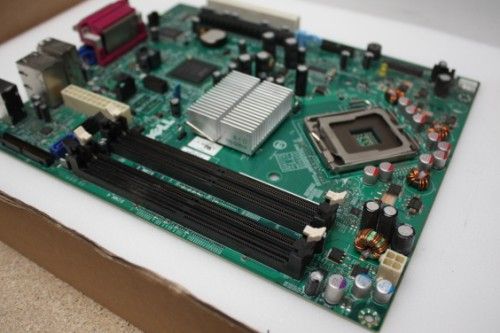

Dell OptiPlex 755 Smal Form Factor Motherboard
P/N: PU052 , 0PU052
- Chipset: Intel Q35 Express Chipset w/ICH9DO
- Socket: LGA775
- Supported Memory: 667-MHz or 800-MHz DDR2 SDRAM (Max 8GB)
- 4x Memory Slots
- Onboard Graphics: Intel Graphics Media Accelerator 3100
- Onboard Sound: ADI 1984 High Definition Audio
- Onboard LAN: network interface with ASF 1.03 and 2.0 support as defined by DMTF, Capable of 10/100/1000 communication, iAMT 3.0

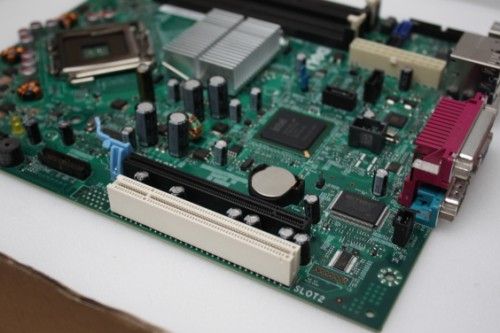

- Expansion Slots
- 1x PCI-Express x16
- 1x PCI

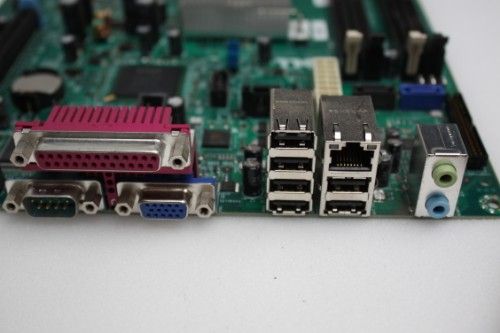

- Serial: 9-pin connector; 16550C-compatible
- Parallel: 25-hole connector (bidirectional)
- Video: 15-hole VGA connector
- Network adapter: RJ45 connector
- USB: six USB 2.0–compliant connectors
- Audio: two connectors for line-in/ microphone and line-out
- Package Includes
- PU052 Motherboard only
|Dispatch Time||You can select first available delivery slot upon checkout.
Get it Next Day when you choose Express Delivery at checkout.
|Price View||Price Range|
|Number of Memory Slots||4|
|Expansion Slots||PCI, PCI Express|
|Input/Output Ports||Ethernet (RJ-45), Parallel (IEEE1284), SATA III, Serial (RS-232)|
|Features||On-Board Audio, On-Board Video Chipset|
|Condition Comment||Full working order|
|Warranty||30 Day RTB (Return to Base) Warranty|
|Important||It is your responsibility as a buyer to ensure this is compatible with your hardware or operating system before buying.
Assume that any photo is a library photo, not the actual item you will receive, unless expressly mentioned above. Item has been pulled from salvage machine so expect the item to be in a used condition with minor scuffs etc.
Unless expressly mentioned in the description, there will be no other parts included with the item. This includes items such as drivers, cables, manuals, warranty cards etc. Hard drives, tape drives, caddies etc. will not include any screws, fixing rails unless expressly mentioned.
