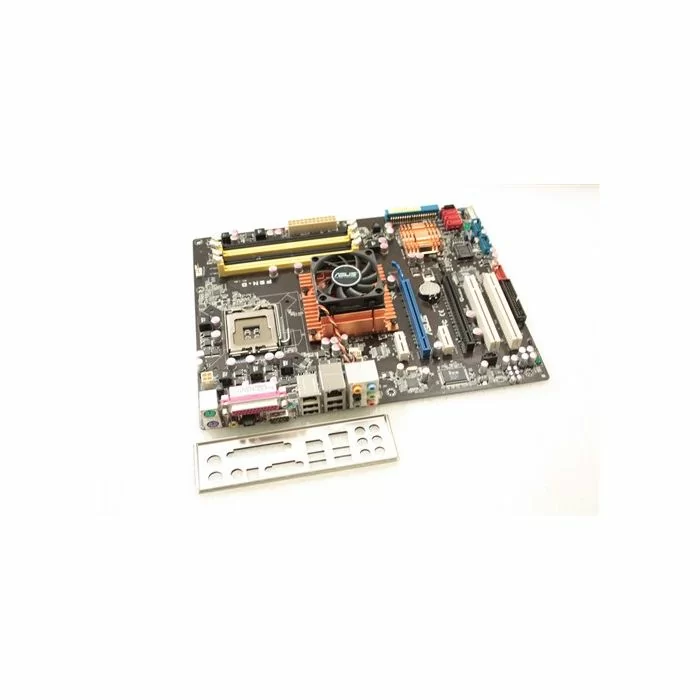

Asus P5N-D LGA775 nForce 750i SLI Quad Core Motherboard

The P5N-D is a NVIDIA 750i SLI chipset-based motherboard that combines powerful performance with great energy efficiency; and supports NVIDIA SLI technology with PCI Express 2.0 for extreme graphics performance. It also comes with the world’s first ASUS EPU (Energy Processing Unit), allowing the CPU power supply to be digitally monitored and fine-tuned with improved VRM efficiency in heavy or light loadings - attaining the best possible power efficiency and energy savings to help save the environment.

• CPU
• Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
• Compatible with Intel® 05B/05A/06 processors
• Support Intel® 45nm CPU


• Chipset
• NVIDIA nForce 750i SLI


• Front Side Bus
• 1333/1066/800 MHz


• Memory
• 4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
• Dual Channel memory architecture
  * Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
  **When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.


• Expansion Slots
• 2 x PCIe 2.0 x16 - Single VGA mode: x16 - SLI mode: Hardware ready for x16, x16
• 2 x PCIe x1
• 2 x PCI 2.2


• Scalable Link Interface (SLI™)
• Support two identical NVIDIA SLI-Ready graphics cards (Hardware ready for x16, x16)


• Storage
• Southbridge
• 1 xUltraDMA 133/100/66/33
• 4 xSATA 3 Gb/s ports NVIDIA MediaShield™ RAID: Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives


• LAN
• NVIDIA nForce® 750i SLI built-in Gigabit MAC with external PHY


• Audio
• Realtek ALC883 8 -Channel High Definition Audio CODEC
• Coaxial / Optical S/PDIF out ports
• Support Jack-Sensing, Enumeration, Multi-streaming


• IEEE 1394
• VIA6308P controller supports 2 x 1394a ports (one at mid-board; one at back panel)


• USB
• 8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)


• ASUS Unique Features
• ASUS Power Saving Solution
  ASUS EPU (Energy Processing Unit)
  ASUS AI Nap- ASUS AI Gear 3 (ASUS EPU Utility)
• ASUS Quiet Thermal Solution
  ASUS Fanless Design: Heatsink solution
  ASUS Q-Fan 2
  ASUS Optional Fan for Water-cooling
• ASUS EZ DIY
  ASUS Q-Connector
  ASUS Q-Shield
  ASUS O.C. Profile
  ASUS AI Direct Link
  ASUS CrashFree BIOS 2
  ASUS EZ Flash 2


• Back Panel I/O Ports
• 1 x Parallel
• 1 x PS/2 Keyboard
• 1 x PS/2 Mouse
• 1 x IEEE 1394a
• 1 x LAN(RJ45) port
• 4 x USB 2.0/1.1
• 8 -Channel Audio I/O


• Internal I/O Connectors
• 2 x USB connectors support additional 4 USB ports
• 1 x Floppy disk drive connector
• 1 x IDE connector
• 4 x SATA connectors
• 1 x IEEE 1394a connector
• 1 x CPU Fan connector
• 1 x Chassis Fan connector
• 1 x Power Fan connector
• 1 x S/PDIF Out connector
• 1 x4-pin ATX 12V Power connector
• 1 x 24 Power connector
• Front panel audio connector
• Chassis Intrusion connector
• CD/AUX audio in
• System Panel


• BIOS
• 8 Mb Flash ROM, DMI 2.0, PnP, WfM 2.0, SM BIOS 2.4, Award BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 2


• Manageability
• WfM 2.0,DMI 2.0,WOL/WOR by PME,WOR by Ring,PXE,AI NET2 WO USB/KB/MS


• Form Factor
• ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )


• Package Includes:
• Asus P5N-D Motherboard
• I/O Shield
