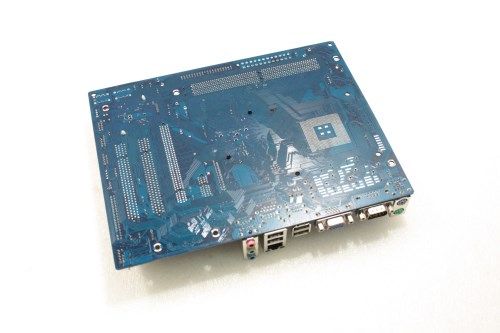

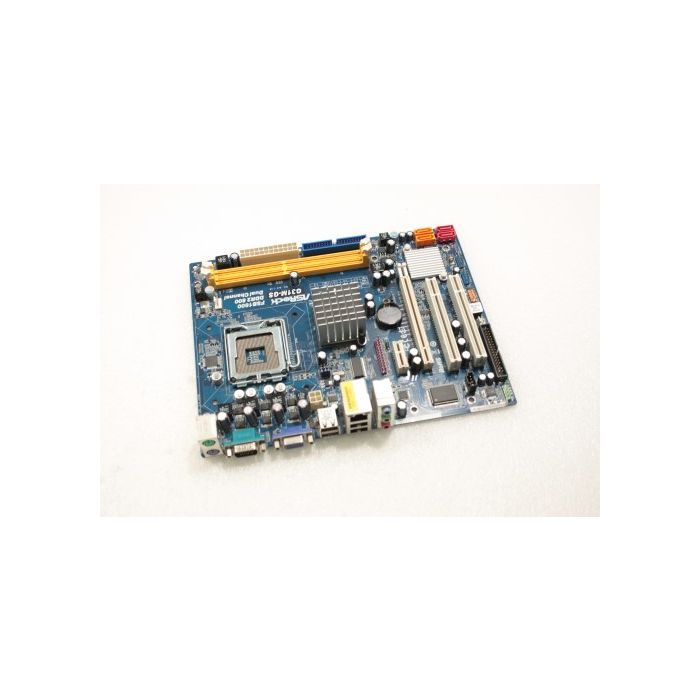

ASRock G31M-GS P1.40-15B Socket LGA775 Intel Motherboard

ASRock G31M-GS P1.40-15B

1. Compatible with all FSB1600 MHz CPU
2. Intel^® Graphics Media Accelerator 3100, DirectX 9.0, Max. shared memory 384MB
3. PCIE Gigabit LAN
4. Supports ASRock Instant Boot
5. Supports Smart BIOS, ASRock OC Tuner (Up to 170% CPU frequency increase)
6. Supports Extra ESD Protection, Intelligent Energy Saver (Up to 38% CPU Power Saving)

Product Specifications:

• CPU

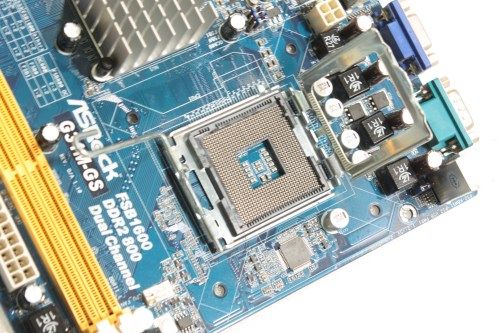

- LGA 775 for Intel^® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium^® Dual Core / Celeron^® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with all FSB1600/1333/1066/800 MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

• Chipset

- Northbridge: Intel^® G31
- Southbridge: Intel^® ICH7

• Memory

- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 800/667 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB

• Bios

-4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports Smart BIOS

• Graphics

- Intel^® Graphics Media Accelerator 3100
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 384MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

• Audio

- 5.1 CH Windows^® Vista™ Premium Level HD Audio (ALC662 Audio Codec)

• Lan

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
- Supports PXE

• Slots

- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots

• Connector

- 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

• Rear Panel  I/O

I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
