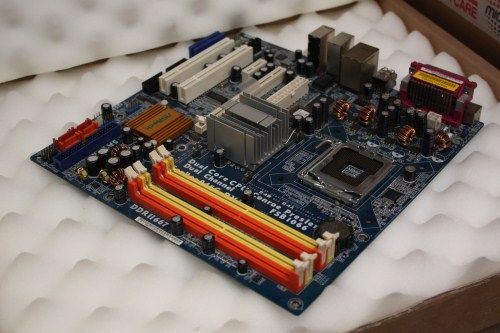

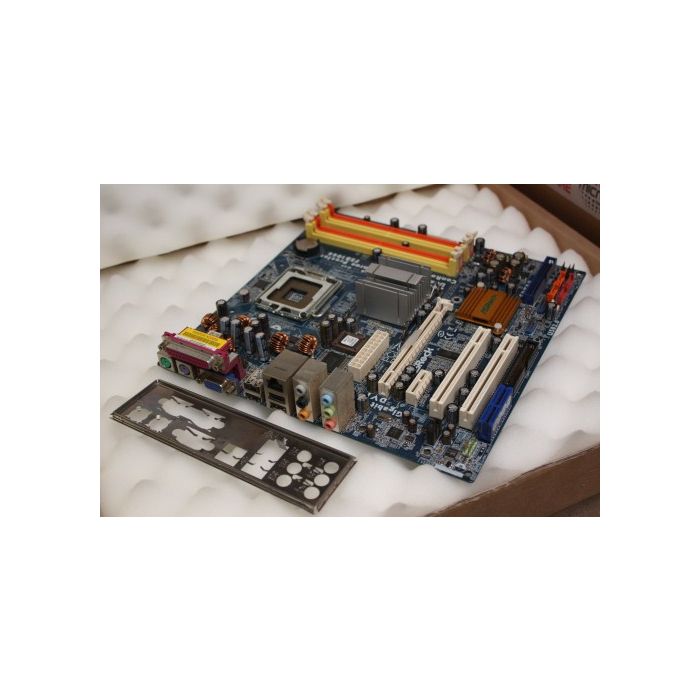

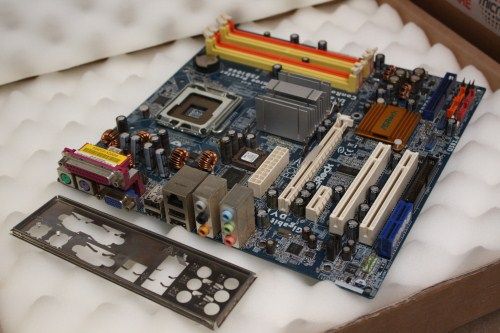

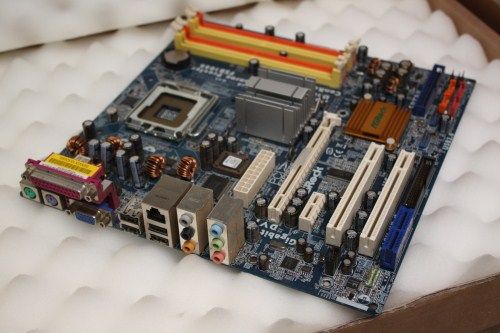

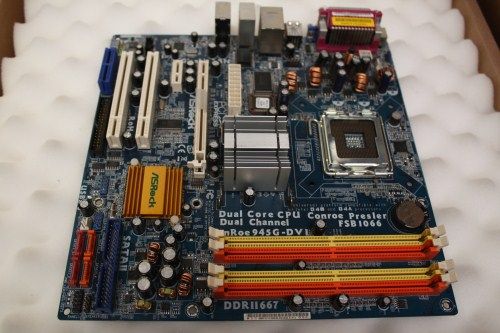

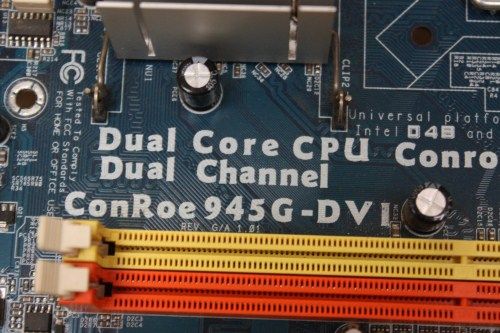

ASRock ConRoe 945G-DVI Socket LGA775 Micro ATX Motherboard
ASRock Socket LGA775 Micro ATX Motherboard
Model: ConRoe 945G-DVI
- Motherboard Specifications:
- CPU
- LGA 775 for Intel Dual Core Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4 / Celeron D
- FSB 1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
- Chipset
- Northbridge: Intel 945G
- Southbridge: Intel ICH7
- Memory
- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*
- *Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows XP, Windows XP 64-bit, Windows Vista and Windows Vista 64-bit.
- BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
- Graphics
- Intel Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
- Dual VGA Output: Support D-Sub and DVI-D ports with DVI Graphics-SI Card by independent display controllers
- Audio
- 7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec)
- LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B
- Supports Wake-On-LAN
- Supports PXE
- Slots
- 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 1 x HDMR slot
- Connector
- 4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

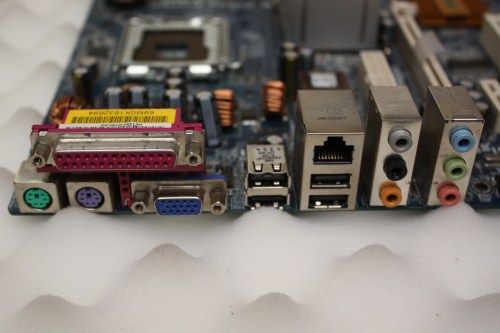

- Rear Panel I/O
- HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
- Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Package Includes
- Motherboard
- I/O Plate
MPN | ConRoe 945G-DVI |
---|---|
Price View | Price Range |
Manufacturer | Asrock |
Number of Memory Slots | 4 |
Features | On-Board Audio, On-Board Video Chipset |
Condition | Certified Refurbished (Excellent) |
Condition Comment | Full working order |
Warranty | 12 Month Warranty |
Important | It is your responsibility as a buyer to ensure this is compatible with your hardware or operating system before buying. Assume that any photo is a library photo, not the actual item you will receive, unless expressly mentioned above. Unless expressly mentioned in the description, there will be no other parts included with the item. This includes items such as drivers, cables, manuals, warranty cards etc. Hard drives, tape drives, caddies etc. will not include any screws, fixing rails unless expressly mentioned. |
