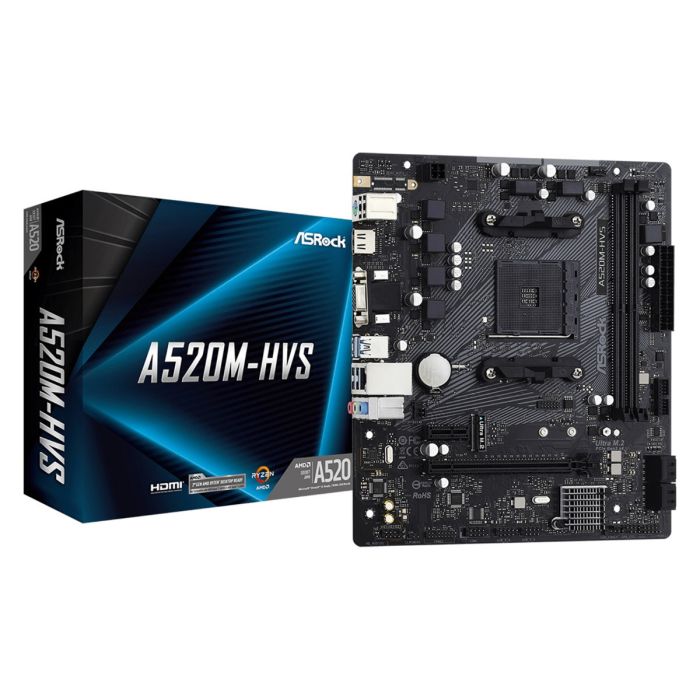

ASRock A520M-HVS AM4 AMD A520 Micro-ATX DDR4 Motherboard M.2 HDMI
ASRock A520M-HVS Micro-ATX motherboard featuring the AMD A520 chipset and AM4 socket. Supports compatible AMD Ryzen 3000, 4000 G-Series, 5000 and 5000 G-Series processors, up to 64GB DDR4 memory, PCIe 3.0 x16, Ultra M.2 PCIe Gen3 x4 / SATA storage, Gigabit Ethernet, HDMI 2.1 and D-Sub video outputs. Windows 11 ready with a supported processor and suitable BIOS configuration.
ASRock A520M-HVS AMD AM4 Micro-ATX Motherboard
The ASRock A520M-HVS is a compact and reliable Micro-ATX motherboard built around the AMD A520 chipset and AM4 processor socket.
Designed for cost-effective home, office and general-purpose PC builds, it combines support for a wide range of AMD Ryzen processors with DDR4 memory, PCIe 3.0 expansion, fast M.2 storage, Gigabit Ethernet and HDMI 4K video output.
Updated CPU Support: ASRock currently lists support for compatible AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series desktop processors. Exact processor support may depend on BIOS version.
Key Features
- AMD A520 chipset
- AMD AM4 processor socket
- Supports compatible Ryzen 3000 / 4000 G-Series / 5000 / 5000 G-Series processors
- 6-phase power design
- 2 x DDR4 DIMM slots
- Up to 64GB DDR4 memory
- DDR4 speeds up to 4733+ MT/s overclocked depending on CPU
- XMP memory support
- 1 x PCIe 3.0 x16 slot
- 1 x PCIe 3.0 x1 slot
- 1 x Ultra M.2 socket supporting PCIe Gen3 x4 and SATA M.2 SSDs
- 4 x SATA III 6Gb/s connectors
- Realtek Gigabit Ethernet
- HDMI 2.1 output
- D-Sub / VGA output
- 7.1-channel HD Audio
- ASRock Super Alloy design
- Windows 11 capable with supported hardware and BIOS configuration
- Micro-ATX form factor
AMD Ryzen Processor Support
The AM4 socket supports a wide range of compatible AMD Ryzen processors, including selected:
- AMD Ryzen 3000 Series
- AMD Ryzen 3000 G-Series
- AMD Ryzen 4000 G-Series
- AMD Ryzen 5000 Series
- AMD Ryzen 5000 G-Series
Important: Not every AM4 processor is supported. Processor compatibility can depend on the exact CPU and installed BIOS version. Please check the ASRock CPU Support List before installation.
Compatibility Warning: Original ASRock documentation specifically excludes the AMD Ryzen 5 3400G and Ryzen 3 3200G from compatibility with this motherboard.
DDR4 Memory
- 2 x DDR4 DIMM slots
- Dual-channel memory architecture
- Maximum capacity: 64GB
- Supports ECC and non-ECC unbuffered memory depending on CPU
- XMP memory profile support
- 15μ gold contacts in DIMM slots
Memory speed depends on the installed processor and memory modules. Compatible Ryzen APUs can support overclocked DDR4 speeds up to 4733+ MT/s.
Ultra M.2 Storage
The Ultra M.2 socket supports both PCIe NVMe and SATA M.2 SSDs, providing excellent flexibility when choosing storage.
- 1 x M.2 M-Key socket
- M.2 2242 / 2260 / 2280 support
- PCIe Gen3 x4 NVMe support up to 32Gb/s
- SATA III M.2 SSD support
- NVMe boot support
SATA Storage
- 4 x SATA III 6Gb/s connectors
- AHCI support
- NCQ support
- Hot Plug support
- RAID 0 support
- RAID 1 support
- RAID 10 support
PCI Express Expansion
- 1 x PCI Express 3.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
The PCIe x16 slot is suitable for a compatible dedicated graphics card or other PCI Express expansion device.
HDMI 2.1 & VGA Graphics Outputs
When paired with a compatible AMD Ryzen processor featuring integrated Radeon graphics, the motherboard provides two display outputs:
- 1 x HDMI 2.1 – up to 4096 x 2160 at 60Hz
- 1 x D-Sub / VGA – up to 1920 x 1200 at 60Hz
- Dual-display support with a compatible APU
- HDR support via HDMI
- HDCP 2.3 support
- 4K Ultra HD playback support
Please note: The motherboard does not contain its own graphics processor. HDMI and VGA outputs require a compatible AMD processor with integrated graphics.
Gigabit Ethernet
- Realtek RTL8111H Gigabit LAN controller
- 10 / 100 / 1000 Mbps Ethernet
- Wake-on-LAN support
- Energy Efficient Ethernet 802.3az
- PXE support
- Lightning / ESD protection
7.1 Channel HD Audio
- Realtek ALC887 / ALC897 HD Audio Codec
- 7.1-channel HD Audio support
- Audio surge protection
USB Connectivity
- 4 x rear USB 3.2 Gen1 ports
- 2 x additional USB 3.2 Gen1 ports via internal header
- 2 x rear USB 2.0 ports
- 4 x additional USB 2.0 ports via internal headers
- ESD protection
Rear I/O
- 1 x PS/2 keyboard / mouse port
- 1 x D-Sub / VGA
- 1 x HDMI
- 4 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0
- 1 x RJ-45 Gigabit Ethernet
- 3 x HD Audio jacks
Internal Connectors
- 1 x 24-pin ATX power connector
- 1 x 4-pin 12V CPU power connector
- 1 x CPU fan connector
- 2 x chassis fan connectors
- 1 x SPI TPM header
- 1 x COM port header
- 1 x chassis intrusion / speaker header
- 1 x front-panel audio connector
- 2 x USB 2.0 headers
- 1 x USB 3.2 Gen1 header
- 1 x Ultra M.2 socket
- 4 x SATA III connectors
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- Solid capacitor design
- Full Spike Protection for USB, audio and LAN ports
Windows 11 Ready
ASRock released BIOS support for Microsoft Windows 11 for the A520M-HVS, including AMD CPU fTPM support.
Windows 11 compatibility still depends on the installed processor, BIOS settings and other Microsoft hardware requirements.
Specifications
- Brand: ASRock
- Model: A520M-HVS
- MPN: A520M-HVS
- Manufacturer Code: 90-MXBE60-A0UAYZ
- EAN: 4710483932311
- Chipset: AMD A520
- CPU Socket: AMD AM4
- Power Design: 6 Phase
- Memory Type: DDR4
- Memory Slots: 2
- Maximum Memory: 64GB
- Maximum Memory Speed: Up to DDR4-4733+ OC depending on CPU
- M.2 Slots: 1
- M.2 Interface: PCIe Gen3 x4 / SATA III
- M.2 Sizes: 2242 / 2260 / 2280
- SATA Ports: 4 x SATA III 6Gb/s
- PCIe: 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x1
- LAN: Realtek RTL8111H Gigabit Ethernet
- Wi-Fi: No
- Bluetooth: No
- Audio: Realtek 7.1 Channel HD Audio
- Video Outputs: HDMI 2.1 + D-Sub / VGA
- Form Factor: Micro-ATX
- Dimensions: 23.0 x 20.1 cm
- Model Year: 2020
- Condition: Brand New
Package Includes
- ASRock A520M-HVS Motherboard
- Quick Installation Guide
- I/O Shield
- 2 x SATA Data Cables
- 1 x M.2 Screw
Please note: CPU, CPU cooler, DDR4 memory, SSD, graphics card, power supply, computer case and operating system are not included.
| SKU | TARGET-MBASR-A520MHVS |
|---|---|
| MPN | A520M-HVS |
| EAN | 4710483932311 |
| Manufacturer | Asrock |
| Model Year | 2020 |
| Form Factor | Micro ATX |
| CPU Brand | AMD |
| Socket Type | Socket AM4 |
| Memory Type | DDR4 |
| Number of Memory Slots | 2 |
| Expansion Slots | PCI Express |
| Input/Output Ports | Ethernet (RJ-45), HDMI, M.2, SATA III, USB 2.0, USB 3.2 |
| Features | On-Board Audio |
| Condition | New |
| Condition Comment | Brand New |
| Warranty | 2 Year Warranty |
