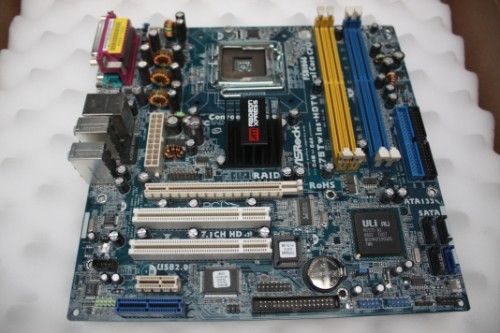

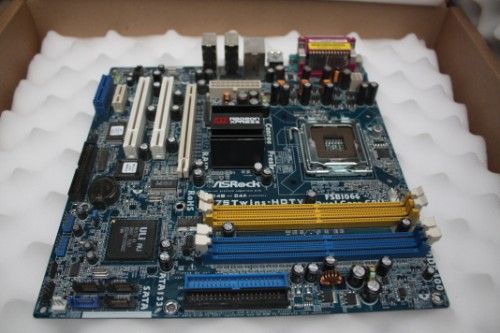

ASRock 775Twins-HDTV LGA775 Core 2 Duo P4 Motherboard

ASRock 775Twins-HDTV Rev: G/A 2.03 Motherboard

• CPU:

• LGA 775 for Intel® Core™ 2 Duo/ Pentium® XE / Pentium® D / Pentium® 4 / Celeron® D processors
• FSB 1066/800/533 MHz
• Supports EM64T CPU
• Supports Hyper-Threading Technology
• Supports Untied Overclocking Technology


• Chipset
• Northbridge: ATI™ Radeon® Xpress 200
• Southbridge: Uli® 1573


• Memory
• 2 x DDR2 DIMM slots
• Supports DDRII667/533 non-ECC, un-buffered memory
• Max. capacity of system memory: 4GB*
• 2 x DDR DIMM slots
• Supports DDR400/333/266 non-ECC, un-buffered memory
• Max. capacity of system memory: 4GB*

  *Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP, Windows® XP 64-bit, Windows® Vista™ and Windows® Vista™ 64-bit.
  **DDRII and DDR are supported separately


• BIOS
• 4Mb AMI BIOS
• AMI Legal BIOS
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• Supports Jumperfree
• SMBIOS 2.3.1 Support


• Graphics
• Integrated ATi X300-based 2D/3D graphics
• DirectX 9.0
• Pixel Shader 2.0
• Max. shared memory 128MB


• Audio
• 7.1 CH Windows® Vista™ Basic Level HD Audio (ALC883 Audio Codec)


• LAN
• Realtek PHY RTL8201CL
• Speed: 10/100 Ethernet
• Supports Wake-On-LAN


• Slots
• 2 x PCI slots
• 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot
• 1 x HDMR slot


• Connectors
• 4 x SATA 1.5 Gb/s connectors (Support RAID 0, 1, 0+1, JBOD) (No support for "Hot Plug" function)
• 2 x ATA133 IDE connectors (support 4 x IDE devices)
• 1 x Floppy connector
• 1 x IR header
• 1 x Game header
• 1 x VGA header
• 1 x TV-OUT header
• CPU/Chassis FAN connectors
• 20 pin ATX power connector
• 4 pin 12V power connector
• CD in header
• Front panel audio connector
• 2 x USB 2.0 headers (support 4 USB 2.0 ports)

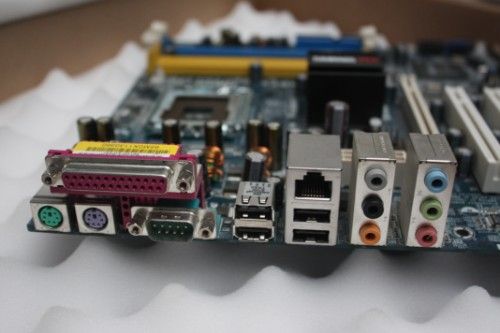

• Rear Panel I/O
  HD 8CH I/O
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x Serial Port: COM1
• 1 x Parallel Port (ECP/EPP support)
• 4 x Ready-to-Use USB 2.0 Ports
• 1 x RJ-45 LAN Port
• Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


• Form Factor
• Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

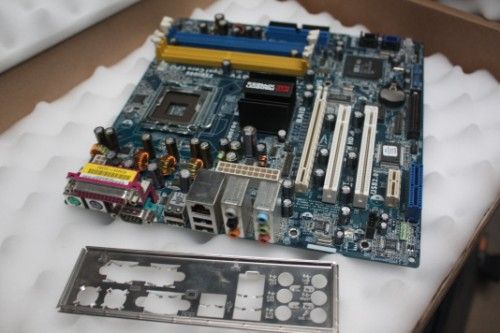

• Package Includes:
• 1 x Motherboard
• 1 x I/O Back Plate Shield
