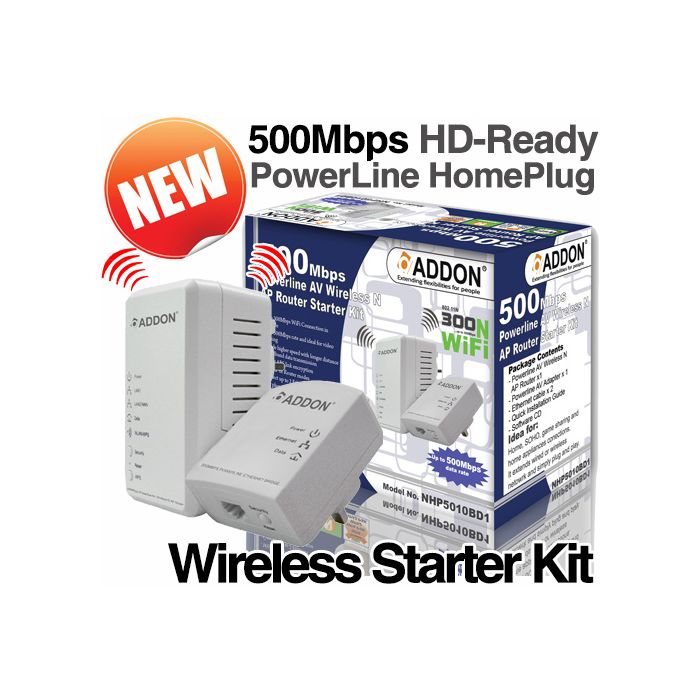

Addon NHP5010BD1 500Mbps Homeplug Powerline AV Wireless N Network Kit
This package contains one 300Mbps wireless Homeplug and one wired 500Mbps Homeplug. 500Mbps Homeplug with wireless n adapter is an 802.11n Extender for transmitting data up to 500 Mbps across the power line, and for wireless the transmitting rate can be up to 300 Mbps. Also 500Mbps HomePlug can provide higher speed with longer distance of the transmission of broadband data service. The advantages to enable customers online and more convenience with better connectivity and suitable for use in both residential (in-home) and commercial (offices, apartments, hotels, and warehouses) network applications.
Features
- Up to 300Mbps WiFi connection in 11n mode
- Up to 500Mbps rate and ideal for video streaming
- Provide higher speed with longer distance of broadband data transmission
- 128-bit AES link encryption
- with AP or Router modes
- Connect up to 2 Ethernet
- Easy plug-n-play installation
NHP5010 Specification
| PHY Rate | 500Mbps |
| Frequency Band | 2-68 MHz (With Mask) |
| Access Methods | TDMA and priority-based CSMA/CA channel access |
| QOS | 4 Levels priority based contention access and multi segment 8-levels VLAN priority field, TOS Field QoS Classification by destination MAC address and IP Port |
| Modulation | OFDM (QAM 8/16/64/256/1024, QPSK, BPSK, ROBO) |
| Nodes | Up to 15 slaves with 1 master, 16 total devices Max 8 bridged devices per station |
| IGMP | Support for IPv4/IGMPv1,v2,v3 snooping Support for IPv6 and MLDv1,v2 snooping Max 16 source addresses and Group Members |
| Encryption | 128-bit AES Link Encryption with key management |
| Standards | IEEE 802.3, IEEE 802.3U IEEE1901 and HomePlug AC compliant |
| Port | One 10/100M WAN port |
| Power Source | 100-240 VAC, 50/60 Hz |
| WiFi Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Security | WEP/WPA/WPA2,WPA-PSK/WPA2-PSK |
| WIFI Frequency Range | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| WIFI Receive Sensitivity | 270M: -68dBm@10%PER 130M: -68dBm@10%PER 108M: -68dBm@10%PER 54M: -68dBm@10%PER 11M: -85dBm@8%PER 6M: -88dBm@10%PER 1M: -90dBm@8%PER |
| Antenna | 2*2dBi Antenna |
HP5100 Specification
| Standard | IEEE 1901 and HomePlug AV compliant Co-existence with HomePlug 1.0 Nodes |
|---|---|
| Peak PHY Rate | 500Mbps |
| Peak Throughput | 95Mbps UDP 95Mbps TCP |
| Range | up to 300m |
| Security | 128-bit AES |
| Modulation Scheme | 4096/1024/256/64/16/8-QAM,QPSK,BPSK and ROBO |
| Frequency | 2MHz~67.5MHz |
| Media Access | Priority based CSMA/CA |
| Max PLC Nodes | 16 |
| Max IGMP Streams | 16 |
| IPv6/MLDv2 Support | Yes |
| LAN Port | One RJ45 (IEEE 802.3 10/100Mbps) |
| LED | Power, Ethernet, Data |
| Button | Security |
Package Includes
- 1x HP5100 adapter
- 1x NHP5010 adapter
- 2x LAN Cable
- Quick Install Guide
- Resource CD
| SKU | NHP5010BD1 |
|---|---|
| MPN | NHP5010BD1 |
| EAN | 4991500000545 |
| Manufacturer | Addon |
| Condition | Certified Refurbished (Excellent) |
| Condition Comment | Brand new |
| Warranty | 12 Month Warranty |
| Important | It is your responsibility as a buyer to ensure this is compatible with your hardware or operating system before buying. Assume that any photo is a library photo, not the actual item you will receive, unless expressly mentioned above. Unless expressly mentioned in the description, there will be no other parts included with the item. This includes items such as drivers, cables, manuals, warranty cards etc. Hard drives, tape drives, caddies etc. will not include any screws, fixing rails unless expressly mentioned. |
