WithIntels brand new enthusiast X38 chipset you are prepared for the latest 65nm and next generation 45nm Core 2 Extreme.Quad/Duo processors with up to 1333 FSB. A total of 8GB high-end DDR2 1-66MHz system memory offers expandability for this latest memory standard. The unique abit engineered electrical design including New Generation digital PWMs and 100% solid state capacitors warrant best power characteristics resulting in lower consumtion, higher efficiency and extreme stability.
- CPU
- Supports Intel® Core™ 2 Duo / Quad processors with 1600/1333/1066/800MHz FSB
- Supports Intel® Core™ 2 Extreme/Quad/Duo & Pentium® Extreme Edition, Pentium® D, Pentium® 4 Processors, Pentium® Dual Core
- Digital PWM Designation provide high quality and efficient power
- Chipset
- Intel® X38 Express / ICH9R Chipset
- Memory
- 4 X 240-pin DIMM sockets support max. memory capacity 8GB
- Supports Dual channel DDR2 1066/800/667 Un-buffered Non-ECC memory
- LAN
- On board PCI Gigabit LAN controller supports 10/100/1000M Ethernet
- Audio
- On board 7.1 CH HD Audio CODEC
- Supports auto jack sensing and optical S/PDIF In/Out
- HDMI audio ready header (S/P DIF header)
- Expansion Slots
- 2 x PCI-E X16 (support PCI Express 2.0)
- 1 x PCI-E X16 (x4 bandwidth)
- 1 x PCI-E X1
- 2 x PCI
- Internal I/O
- 1 x Floppy Port supports up to 2.88 MB
- 1 x ATA 133/100/66 IDE connector
- 6 x SATA 3Gb/s connectors
- 1 x IEEE1394, 4 x USB header (support 8 ports)
- 1 x FP-Audio
- Back Panel I/O
- 1 x PS/2 Keyboard, 1 x PS/2 Mouse
- abit Silent OTES™
- 1 x S/P DIF In
- 1 x S/P DIF Out
- 2 x eSATA
- 7.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
- 1 x 1394
- 4 x USB 2.0
- 1 x RJ-45 LAN connector
- Clear CMOS Button
- Serial ATA
- 6 x SATA 3Gb/s offer by Intel® ICH9R support Intel® Matrix Storage Tech(AHCI & RAID0/1/5/10)
- 2 x eSATA 3Gb/s through JMicron® JMB363 support 0,1JBOD RAID
- IEEE 1394
- Supports 2 Ports IEEE 1394 at 400Mb/s transfer rate
- RoHS
- 100% lead-free process and RoHS compliantabit
- Form Factor
- ATX form factor 305 x 245mm
- Package Includes:

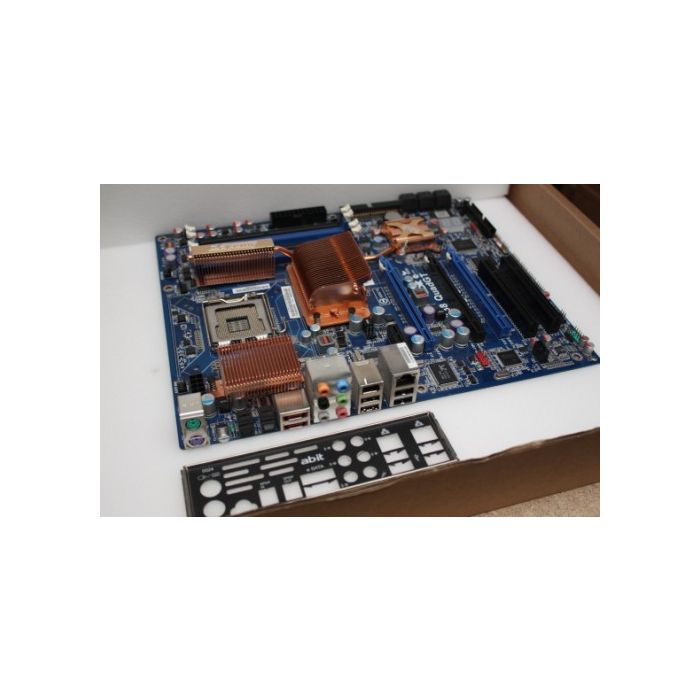

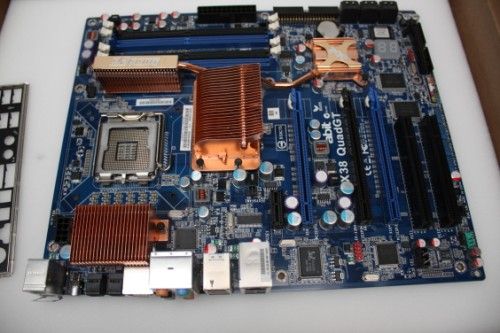

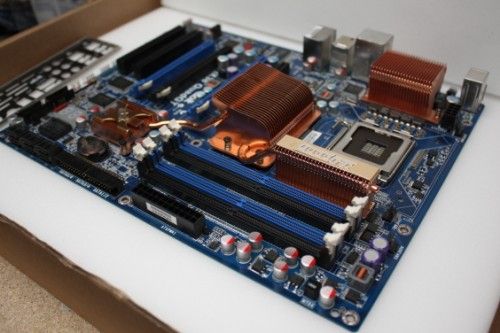

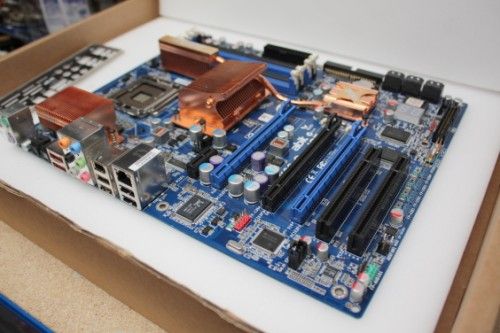

- Abit IX38 QuadGT Motherboard
- I/O Shield
