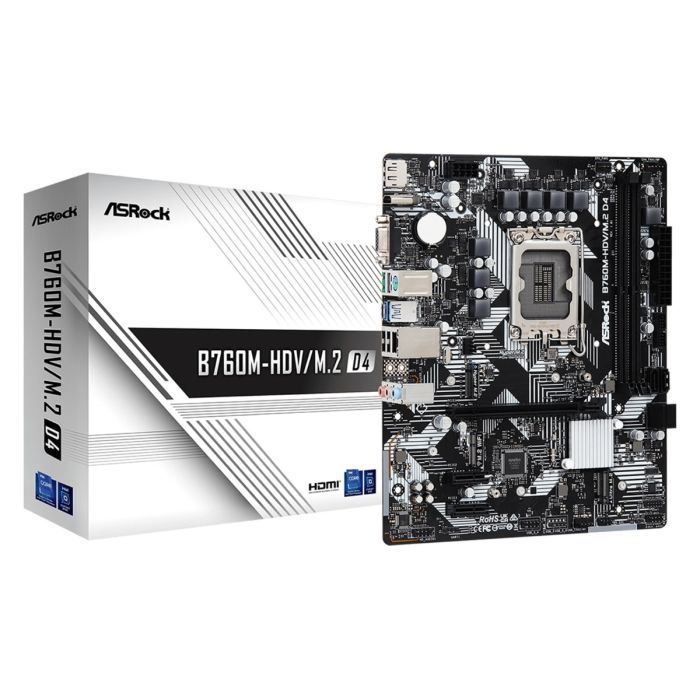

ASRock B760M-HDV/M.2 D4 DDR4 Intel B760 LGA1700 Micro-ATX Motherboard
ASRock B760M-HDV/M.2 D4 Micro-ATX motherboard with Intel B760 chipset and LGA1700 socket. Supports compatible 14th, 13th and 12th Gen Intel Core processors, dual-channel DDR4 memory, two M.2 storage sockets, PCIe 4.0 x16, Gigabit LAN, rear USB-C and HDMI, DisplayPort and D-Sub video outputs. Also includes an M.2 Key E slot for an optional Wi-Fi/Bluetooth module.
ASRock B760M-HDV/M.2 D4 LGA1700 Micro-ATX Motherboard
The ASRock B760M-HDV/M.2 D4 is a compact Micro-ATX motherboard based on the Intel B760 chipset and designed for compatible Intel LGA1700 processors.
It combines DDR4 memory support with PCIe 4.0 graphics, dual M.2 storage, Gigabit Ethernet, USB-C and three display output options, making it a versatile choice for home, office and general-purpose PC builds.
Key Features
- Intel B760 chipset
- LGA1700 CPU socket
- Supports compatible Intel 14th, 13th and 12th Gen Core processors
- 5+1+1 power phase design
- 2 x DDR4 DIMM slots
- Dual-channel DDR4 memory
- DDR4 speeds up to 5333+ MT/s (OC)
- Intel XMP 2.0 support
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 3.0 x1 slots
- 2 x M.2 storage sockets
- 1 x M.2 Key E slot for optional Wi-Fi / Bluetooth module
- 4 x SATA 6Gb/s connectors
- Gigabit Ethernet
- Rear USB Type-C
- HDMI, DisplayPort and D-Sub outputs
- 7.1-channel HD audio
- ASRock Auto Driver Installer
- Brand new condition
Intel LGA1700 Processor Support
The LGA1700 socket supports compatible:
- 14th Generation Intel Core processors
- 13th Generation Intel Core processors
- 12th Generation Intel Core processors
Compatibility Note: Processor compatibility can depend on the installed BIOS version. Please check the ASRock CPU support list for the exact processor before installation.
DDR4 Memory
- 2 x DDR4 DIMM slots
- Dual-channel memory architecture
- Up to 64GB total system memory
- DDR4 up to 5333+ MT/s (OC)
- Native DDR4 speeds dependent on processor and memory configuration
- Intel Extreme Memory Profile XMP 2.0 support
- ECC UDIMM modules operate in non-ECC mode
Dual M.2 Storage
The motherboard provides two M.2 storage sockets with different capabilities:
- 1 x Hyper M.2 – M.2 2260 / 2280 PCIe Gen4 x4, up to 64Gb/s
- 1 x Ultra M.2 – M.2 2260 / 2280 PCIe Gen3 x4 or SATA
- 4 x SATA3 6Gb/s connectors
- SATA RAID 0, RAID 1, RAID 5 and RAID 10 support
Storage Note: If the M2_2 socket is occupied by a SATA-type M.2 SSD, SATA3_3 will be disabled.
PCI Express Expansion
- 1 x PCIe 4.0 x16 slot running at x16
- 2 x PCIe 3.0 x1 slots
Optional Wi-Fi / Bluetooth Upgrade
The motherboard includes an M.2 Key E socket supporting a compatible 2230 PCIe Wi-Fi / Bluetooth module, together with rear antenna mounting points.
Please note: A Wi-Fi / Bluetooth module and antennas are not included with the motherboard.
Graphics Outputs
When used with a processor featuring integrated graphics, the motherboard provides:
- 1 x HDMI 2.1 TMDS compatible – up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC – up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub / VGA – up to 1920 x 1080 at 60Hz
Please note: Motherboard video outputs require a processor with integrated graphics.
Networking
- Realtek RTL8111H Gigabit LAN
- 10 / 100 / 1000 Mbps Ethernet
- RJ-45 network port
USB Connectivity
- 1 x rear USB 3.2 Gen1 Type-C
- 3 x rear USB 3.2 Gen1 Type-A
- 2 x additional USB 3.2 Gen1 Type-A via internal header
- 2 x rear USB 2.0
- 3 x additional USB 2.0 ports via internal headers
Audio
- Realtek ALC887 / ALC897 HD Audio Codec
- 7.1-channel HD Audio support
Rear I/O
- 2 x antenna mounting points
- 1 x PS/2 keyboard / mouse port
- 1 x D-Sub / VGA
- 1 x HDMI
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C
- 3 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0
- 1 x RJ-45 Gigabit LAN
- 3 x HD Audio jacks
Internal Connections
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V CPU power connector
- 1 x CPU fan connector
- 1 x CPU / water pump fan connector
- 2 x chassis / water pump fan connectors
- 1 x SPI TPM header
- 1 x chassis intrusion / speaker header
- 1 x front panel audio header
- 2 x USB 2.0 headers
- 1 x USB 3.2 Gen1 header
- 2 x M.2 storage sockets
- 1 x M.2 Key E Wi-Fi / Bluetooth socket
- 4 x SATA3 connectors
Specifications
- Brand: ASRock
- Model: B760M-HDV/M.2 D4
- MPN: B760M-HDV/M.2 D4
- Chipset: Intel B760
- Socket: LGA1700
- CPU Support: Intel 14th / 13th / 12th Gen Core
- Memory Type: DDR4
- Memory Slots: 2
- Maximum Memory: 64GB
- Memory Speed: Up to DDR4-5333+ (OC)
- M.2 Storage Slots: 2
- Wi-Fi Slot: M.2 Key E 2230
- Wi-Fi Included: No
- LAN: Realtek Gigabit Ethernet
- Video Outputs: HDMI / DisplayPort / D-Sub
- Form Factor: Micro-ATX
- Dimensions: 24.4 x 20.1 cm
- Operating System Support: Windows 10 / Windows 11 64-bit
- Condition: Brand New
Package Includes
- ASRock B760M-HDV/M.2 D4 Motherboard
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x M.2 Screws
Please note: CPU, DDR4 memory, SSD, graphics card, power supply, Wi-Fi / Bluetooth module, Wi-Fi antennas, case and operating system are not included.
| SKU | TARGET-MBASR-B760MHDVMD |
|---|---|
| MPN | B760M-HDV/M.2 D4 |
| EAN | 4710483942020 |
| Manufacturer | Asrock |
| Model Year | 2023 |
| Form Factor | Micro ATX |
| CPU Brand | Intel |
| Socket Type | LGA 1700 |
| Memory Type | DDR4 |
| Number of Memory Slots | 2 |
| Expansion Slots | PCI Express |
| Input/Output Ports | DisplayPort, Ethernet (RJ-45), HDMI, M.2, SATA III, USB 2.0, USB 3.2 |
| Features | On-Board Audio |
| Condition | New |
| Condition Comment | Brand New |
| Warranty | 2 Year Warranty |
| Important | It is your responsibility as a buyer to ensure this is compatible with your hardware or operating system before buying. Assume that any photo is a library photo, not the actual item you will receive, unless expressly mentioned above. Unless expressly mentioned in the description, there will be no other parts included with the item. This includes items such as drivers, cables, manuals, warranty cards etc. Hard drives, tape drives, caddies etc. will not include any screws, fixing rails unless expressly mentioned. |
