PM8M3-V-H
Out of stock

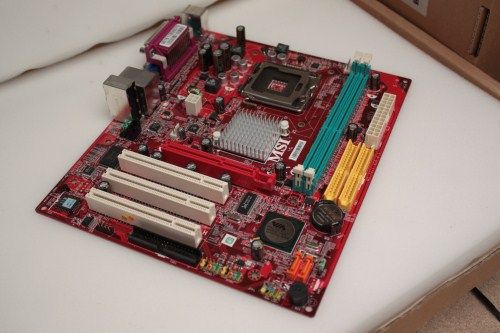

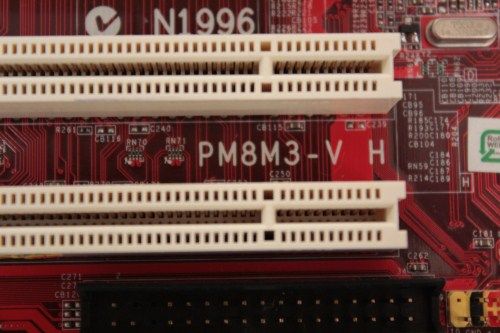

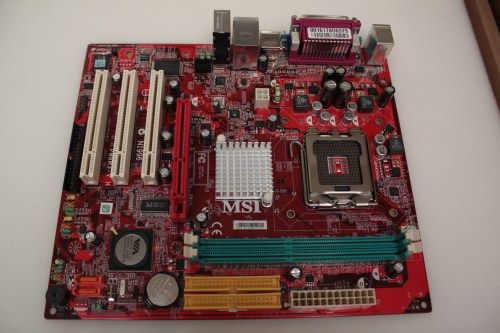

MSI PM8M3-V H Socket LGA 775 Micro ATX Motherboard

£22.95 £19.12
  • Manufacturer: MSI
  • Gigabyte Socket LGA775 ATX Motherboard
  • P/N: GA-EP43-DS3L

  • Specification:

  • CPU
  • Supports Intel Pentium 4, Celeron D processors in LGA775 package
  • Supports up to Pentium 4 5XX, 6XX(90nm) and Celeron D 3xx sequence processor
  • Supports Intel Hyper-Threading technology
  • Supports up to 3.8GHz, FSB@800/533MHz
  • Please refer to MSI Website for CPU Support for compatible CPU; the above description is for reference only

  • Chipset
  • VIA P4M800CE Chipset
  • P4 processor FSB 800MHz
  • DDR DRAM memory DDR 333/400MHz
  • 32-bit AGP (66MHz) for 8x/4x mode
  • Supports 8X V-Link
  • VIA VT8237R plus Chipset
  • Integrated Hardware Sound Blaster/Direct Sound AC'97 audio
  • Dual channel Ultra DMA 66/100/133 master mode EIDE controller
  • Integrated USB 2.0 controller
  • ACPI & PC2001 compliant enhanced power management

  • Memory
  • Supports four memory banks using two 184-pin DDR DIMM
  • Supports up to 2GB DDR333/400 DRAM
  • Supports 2.5v DDR DRAM

  • Slots
  • One AGP (Accelerated Graphics Port) 8x/4X slot
  • Three PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface)

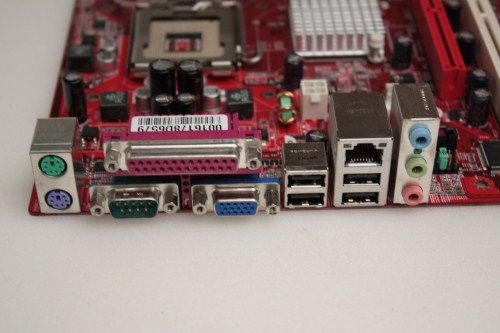

  • Back Panel I/O Ports
  • 1 x Parallel
  • 1 x Serial port (COM 1)
  • 1 x VGA
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Audio I/O (Line-in/Line-out/MIC)
  • 4 x USB 2.0
  • 1 x RJ45 LAN jack

  • Internal I/O Connectors
  • ATX 24-Pin power connector
  • 4-pin ATX 12V power connector
  • CPU / System / Power connectors
  • CD-in connector
  • AUX-in connector
  • Clear CMOS jumper
  • Chassis intrusion switch connector
  • BIOS flash jumper
  • SPDIF-out connector
  • Serial port connector (COM2)
  • 2 x USB 2.0 connector support additional 4 port
  • Front panel audio connector
  • Front panel connector
  • 2 x Ultra DMA 133 IDE device connectors
  • 2 x Serial ATA device connectors

  • Form Factor
  • 24.5 cm(L) x 21.0 cm(W) Micro ATX Form Factor

  • Package Includes:
  • Motherboard
  • I/O Plate
More Information
MPNPM8M3-V H
Price ViewPrice Range
ManufacturerMSI
FeaturesOn-Board Audio, On-Board Video Chipset
ConditionCertified Refurbished (Excellent)
Condition CommentFull working order
Warranty12 Month Warranty
